   RACER'S EDGE SURE FIRE .32 NITRO ENGINE   RATING:

More power! That is what we all want right? If you said no, you need to go to the doctor immediately. There might be something wrong with your head! With the never ending quest for power on all of our minds, engine manufacturers have been pushing the envelope, creating engines with more horsepower and torque than we ever imagined.

Racer's Edge, a leading manufacturer of aftermarket RC components, has entered the high powered engine market with the Sure Fire .32 nitro engine. We grabbed one of these bad boys and strapped it in our Team Losi LST to see what it could really do. Goodbye MACH 26 (a fine engine we must say) and welcome Sure Fire .32 (hang on to your hat)!! It's time to make our LST fly.


   LET'S TAKE A LOOK...



OPENING REMARKS - When Racer's Edge decided they needed an engine in their product line-up, they did not go out and buy some "off the shelf, no-name" engine, slap some specs together and call it good enough. The Sure Fire engine is made in the same factory as the HPI 4.6 engine however it is not the same engine. The SF has been customized and tweaked to numerous Racers Edge specifications including changes in porting, displacement, turbo modifications and more. The SF engine materials, machining & craftsmanship have already been proven by the HPI 4.6 engine.

PACKAGING & FIRST IMPRESSIONS
- Racer's Edge ships their little bruiser in a nice box that amply protects the new engine investment. It is well surrounded in foam and the package includes a detailed manual as well as two carburetor restrictors. The box is a sharp looking piece and has all the Sure Fire specs laid out for you to drool over. The all black color scheme of the engine really caught our eye!. It looks killer and definitely has a "my truck can beat up your truck" aura about it.

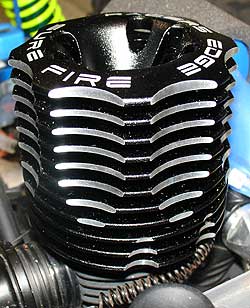

COOLING HEAD - An eleven fin cooling head does an excellent job of keeping the engine temperature under control. It is beautifully machined and allows for easy access to the engine mounting bolts. It is quite large in size which gives it more surface area for improved cooling. We did notice that the bottom of the head is anodized where it contacts the block. Technically this can hamper cooling a little bit however it was not a problem in any of our testing. The engine ran at consistent temps at all times.

The head comes standard with a single shim. The manual states that the engine is good to go for 20% or 30% nitro as is. No extra shimming required for the 30%. The engine does not come with a glow plug installed so be sure to grab a couple of them at the LHS before you head home!


ENGINE BLOCK
- The block is reminiscent of an HPI block and features lots of ribbing in high stress areas. A flat black paint job gives the engine a very sharp, tough look. The Sure Fire engine features an internal one-way bearing that allows for easy conversion to an optional roto start or non-pullstart backplates.


one-way
The easy bolt on backplate options are:

# RCESF10565 - SUREFIRE .32 NON PULL BACKPLATE
# RCESF10570 - SUREFIRE .32 ROTO START BACKPLATE









Before installing the engine, we removed the backplate and applied a thin layer of hi-temp sealant to prevent any air leaks. This should be done to all new engines to prolong life and prevent headaches!





CARBURETOR - The slide style carburetor is a three needle (high, mid and low speed) setup and the carburetor body is composite. The slide has a nice dust boot on it to prevent crud from sticking up the slide and potentially getting inside your engine. All the adjustment needles have a factory flush setting, meaning to get the carb back to the original factory settings, they simply need to be turned until they are flush with the carb body. You will never have to run back and check the manual to see what the original settings were! A simple yet much appreciated feature.

The idle screw and dust boot are standard issue stuff. There is a dual o-ring setup on the carb where it slides into the engine block for extra tight air sealing. During installation, we removed the carb and sealed this area with hi-temp sealant to further prevent the possibility of air leaks. Like the backplate sealing, the carb sealing should be done to all new engines!

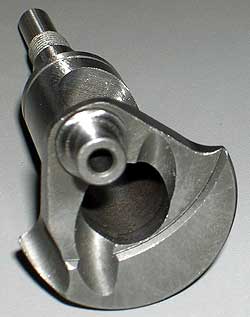

CRANKSHAFT
- The turbo machining on the crankshaft increases overall engine performance buy mixing the fuel and air better and by literally shooting the fuel up to the ports. This is a serious performance enhancing feature. The crank is a SG style






CONNECTING ROD
- The connecting rod is constructed from 7075 aluminum and is a knife-edged design. The "knife-edges" reduce drag and help the engine hit higher RPM levels. It also uses dual bushings that will improve engine life.









PISTON & SLEEVE - The piston has a double oil groove in it to increase compression and provide reduced cylinder sleeve resistance. The sleeve itself features some aggressive porting and a HUGE exhaust port. The machine work on the sleeve is very good with no rough edges to cause turbulence which can lead to reduced power. There are 8 ports in the sleeve.

PISTON SLEEVE

QUALITY / FIT & FINISH - The finish of the engine is great and overall it has a real "bad boy" look about it. The details on the cooling head, block and internals speak volumes for the quality that is built into this engine. It is an impressive unit.


  TIME TO BOLT IT IN!
INSTALLATION - We chose to install the Sure Fire in our Team Losi LST. It is our heaviest truck and could benefit from some big horsepower and torque. The stock MACH 26 was removed and the basic engine components were transferred over. Everything (flywheel, clutch, header, pipe, air filter, etc) is a direct fit from the MACH to the Sure Fire.

When transferring the flywheel, it is important to use the flywheel collet from the MACH and not the one included with the Sure Fire. We also used the stock clutch shoes but as you will read about later, they were really not up to handling the torque and power the Sure Fire delivers.


FLIP MY CARB! - Everything from the MACH to the Sure Fire is a direct swap over. This makes the Sure Fire and easy and excellent engine upgrade for any LST owner. The only thing that required some attention was the carburetor. The SF carb needed to be rotated 180 degrees. We also redirected the fuel intake nipple and adjusted the position of the ball end on the carb slide. That's it. Perfect fit.

   BREAKING IT IN!

Video clip of engine break-in (3MB) .zip file


BREAK-IN - The break-in instructions are detailed and leave no question on how to get things going. With that said, it should also be noted that the entire manual is well written. You will find many different people who use many different methods to break-in their engines. We simply stick to the manual and do what it tells us. All of our engines have lasted a long time and provided us excellent service by doing what the manual says to do.

The Sure Fire break-in procedures require idling the engine through 1 tank of fuel, then letting it cool. The 2nd and 3rd tanks were for 50% throttle and under driving. Simple oval patterns were made, allowing the truck to coast at times and letting the engine cool. Tanks #4-6 were used for power tuning. We adjusted the high speed needle through these tanks, gradually, looking for the sweet spot in performance.

We utilized Trinity Monster Fuel 30% with 12% synthetic castor oil. Engine temps were taken using a MIP on-board temperature gauge. We used a Racer's Edge #5 glow plug (equal to a McCoy #9) during our break-in and testing.

Here's some test data we collected during the break-in procedure with our on-site weather station:


TEST LOCATION:
Burnett, Wisconsin
DATE & TIME: December 2005
OUTSIDE TEMPERATURE: 38F - 42F
ELEVATION: approx. 850' above sea level
BAROMETRIC PRESSURE: 30.00 inches and steady
WIND: From the West at 10-17 mph


TANK NUMBER:
ENGINE TEMP RANGE: NOTES:
1 205 F - 225 F Running rich but idles like a champ. Engine NEVER dies out during this, or any other tank of break-in. Impressive to say the least!
2 thru 3 235 F - 248 F Running the 1/2 throttle, oval pattern.
Steady smoke stream from exhaust.
4 thru 6 235 F - 254 F Tuning for power stage. Engine is getting VERY strong. Steady/healthy smoke stream from the pipe.

   WHERE THE RUBBER MEETS THE ROAD (OR THE DIRT)!


PERFORMANCE - Once we had the engine dialed in for maximum power while maintaining decent running temps, it was time to see what it could really do. The LST is no lightweight and the Sure Fire has its work cut out pushing this fat hog around. The MACH did a fine job of this. The Sure Fire does a stellar job.

The SF engine delivers smooth, trigger on, power throughout the power band. Where it really seems to shine is in the lugging/chugging department. Otherwise known as torque. It has some serious deep down "grunt" and that is much appreciated with a heavy truck like the LST.

We kept our LST in high gear as low gear was almost worthless. Every pull of the trigger while in low gear would just wheelie and/or flip the truck. Even in high, the launch power was incredible! Even in high gear, if the tires could get traction, the front end was coming off the ground. From a dead stop, it started pulling hard right away and did not stop until maximum RPM was achieved. No hesitation was felt at any time.

Power, power, power AND MORE POWER. That pretty much sums it up. This engine has a lot of TORQUE. It is a torque monster. We had to re-glue several of the LST tires after about 30 minutes of hard running. Granted they may not have been glued all the great from the beginning BUT the MACH never chucked them after several gallons of hard running!

Stay tuned for some video of the engine in action. As soon as the weather cooperates, we will get some footage!

Clutch woes! Our stock LST clutch took a dump at about the 1/2 gallon mark. The actual failure was a broken clutch spring. We finished the day by removing the broken spring and shoe and just running it with two clutch shoes (it actually worked pretty good). That is not the best thing to do but hey...we were in the field and ready to pound on this thing. A silly clutch spring was not going to stop us! We broke a total of two clutch springs during our testing however we were using the setup from the original MACH. This is no fault of the engine. We should have used a new clutch and spring setup for our new, more powerful engine! The stock, 3-shoe setup has been restored however a bigger, badder clutch will be a very good idea in the near future.

TUNING - We hate finicky engines. You know what we are talking about. The ones you can never seem to get tuned right! Thankfully, the Sure Fire is a dream to tune. Once we did our initial, minor adjustments for the day, we could run for hours and hours without touching the needles.

STARTING - Even in the break-in stage, the Sure Fire started very easily. In fact it started on the 5th pull out of the box and after that it was 3 pulls or less. As with any big block, you need to be careful not to hydro-lock the cylinder with fuel when starting. It is a great way to bust a recoil rope! Overall the SF started like a champ throughout the break-in and testing process.

FUEL CONSUMPTION - As you would expect with a big block engine, the Sure Fire is a thirsty dog! Depending on how we were running the truck, the SF would drain the LST tank in about 15 minutes or less. In comparison, the stock MACH engine would go 20 minutes on average between refuels. Of course these times would vary with your driving style, fuel type used, ambient temps, tuning, etc. Keep in mind we are comparing a .26 engine to a .32 engine. The Sure Fire is 20% larger in the displacement department and the increased fuel usage seems to coincide with this number. Don't read this the wrong way! We would expect a decent amount of fuel consumption with an engine of this power rating. Fuel is cheap!!

The Sure Fire 32 also comes with two different carb restrictors (8mm and 8.5mm) that could be used to extend the engine run time. Did we use them? Nope. We wanted POWER! Will you use them? Maybe. You have the option anyway!

ENGINE SPECIFICATIONS
Horsepower: 3.6
RPM: 38,000
Engine Size: .32 cubic inch (5.2cc)
Sleeve: 8 port
Bore: 19.5 mm
Stroke: 17.5 mm
Crankshaft: TURBO Modified, SG
Construction: ABC
Weight: 450 g (w/pull start)
Carburetor: 9 mm composite slide (with 8.5mm & 8 mm Carb reducers)
Carburetor adjustments: 3 needle, easy flush setting
Connecting rod: 7075 aluminum (Dual bushing)

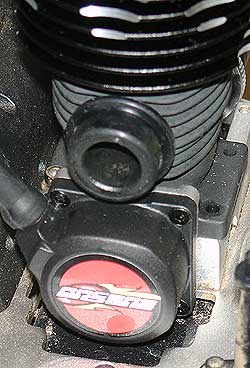

Exhaust Type: Rear
Plug Type: Standard
Starting: Pull start included
One way: TURBO Modified

   LADIES AND GENTLEMEN OF THE JURY, HAVE YOU REACHED A VERDICT?




 RACER'S EDGE SURE FIRE .32 NITRO ENGINE
packaging   - VERY GOOD
quality   - EXCELLENT
instructions   - VERY GOOD
installation   - EXCELLENT
performance   - EXCELLENT
cost/value   - VERY GOOD
OVERALL   - VERY GOOD

COST / VALUE - This engine is sold on the Racer's Edge web site for $350. Ouch! Good news. The "street price" (what you can find it for at your local hobby store) is about $195-$200. Compared to other engines in the .30 or above category, the price is right.

THE VERDICT - The only thing we did not like (and it is minor)....no glow plug! When you slap down $200 for a new engine, we think it should have a glow plug included.

After running close to a gallon through it, we tore it down to see how things were looking inside. We were happy to see that everything still looked like new. The wear in the cylinder sleeve at the "pinch point" was even and minimal. It starts easily and idles like a champ. Our engine also seemed to "hold a tune" very well. Once we had it set, we were good to go all day. Our operating temperatures were always under 260 F and typically hovered around 230-250 F.

We are very pleased with the overall performance of this engine. The most impressive thing was the available torque no matter what RPM the engine was running at. The torque is there all the time. We never thought our LST could get up and GO so quickly! This engine is a solid work horse. The Sure Fire 32 would be an excellent upgrade for the LST, SAVAGE, MGT, Big block T-Maxx's, Truggys and more.

In our opinion, the Sure Fire 32 is a great investment and will please the power hungry beast that lives inside all of us.

What's under your hood? Visit the Racer's Edge web site for more info on where to find your local Sure Fire dealer.
