Project JUMPMAXX



   EPIC BIG BORE .18 POWERPLANT

EPIC 18 Big Block Nitro EngineWith all the talk about big block this and big block that, we thought it would be nice to take a look at another powerful, yet more cost effective solution for breathing new life into your truck.

Enter...EPIC Motorsports with their .18 "Big Bore". That's "Big Bore", not "Big Block". The difference (besides the obvious displacement difference) is that the EPIC unit can be bolted into your existing T-Maxx (or pretty much anywhere else you have a pull start .12 or .15) without having to upgrade a chassis and linkages etc etc etc. The Big Bore (or BB as we will refer to it in this review) is an excellent solution to the never ending quest for big power...on a budget.

Let's face it, not everyone can afford the Italian Stallions and even if you could, it would really be a waste of money unless you are racing!!

Read on to see why this engine should be high on your "must have" list.



   FIRST IMPRESSION
EPIC 18 Big Block Nitro Engine
EPIC 18 Big Block Nitro EnginePACKAGING - EPIC does a fantastic job packaging the Big Bore engine. Not only does it come securely wrapped in foam inside a cardboard box to protect it from shipping damage, it comes with its own nylon carrying case adorned with the EPIC motorsports logo. Sweet! Any RC enthusiast can find a use for this great little carrying case.

The included instructions are good however we thought the break-in instructions could have been a bit more detailed (see break-in below). There is an extra large fold-out exploded view parts list that is detailed, big and easy to read. This is a really nice touch!

In our opinion, the engine simply could not have been packaged better. Everything was well protected and in perfect order.
  LET'S TAKE A CLOSER LOOK
EPIC 18 Big Block Nitro Engine


EPIC 18 Big Block Nitro EngineQUALITY / FIT & FINISH - By simply giving the engine a visual examination, it is easy to see the quality EPIC has poured into it. The engine case, head and other included components are nicely manufactured and make you feel great about the money you just invested in it (just wait until you run it - then you will be thinking "why did I wait so long to get this engine?").

The 10 fin cooling head (with an additional 4 fins built into the block) are beautifully machined and make even the nicer aftermarket heads we have seen look a bit shabby.

The head comes standard with a single shim. EPIC recommends adding an additional shim if 30% nitro will be used. The engine also comes with a glow plug installed.

Note the picture to the left: Take a look at the difference between the EPIC (left side of picture) and a standard Traxxas .15 small block (right side of the picture)! When EPIC says "Big Bore", they mean it. The top green line aligns with the top edge of the bore of each engine. Notice the bottom green line and the obvious difference in bore size (16.4mm bore size on the EPIC). This difference can be felt when pull starting the BB.

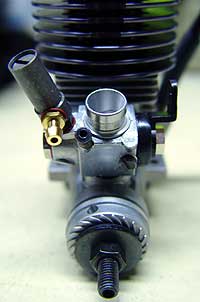

We liked the extra large front crankshaft bearing this engine is setup with (reference the picture to the left). It will most certainly add longevity to the engine and is a "must" for the high RPM's this baby dishes out.

The one way bearing (reference picture to the right) is of considerable size as well and never once gave us any slip problems. Of course time will tell how long it lasts and how resistant it is to slipping. If it is of the same quality as the rest of the engine, it should last a very long time.

During our disassembly and inspection of the engine, we found that all the bolts were nice and tight. We think that it's always a good idea to check the hardware on new components before adding them to your vehicle. We also found the inside of the engine to be clean and free from any manufacturing debris.

  TIME TO BOLT IT IN!
EPIC 18 Big Block Nitro EngineEPIC 18 Big Block Nitro Engine
INSTALLATION - EPIC recommends sealing the carb with red high temperature sealant before operation so we heeded their instructions and did that before starting the install. This is a good idea with any new engine or anytime you remove the carb from your engine as it prevents troublesome air leaks.

Installing the EPIC 18 Big Bore requires cutting the threaded crank shaft to make it fit. We installed the engine in an "old style", original T-Maxx with "tons" of aluminum on it (chassis, bulkheads, shock towers, skids, chassis braces, etc). It is a heavy truck and the extra power provided by the BB will be welcome. Obviously, installation may be different in your RC vehicle however the basics should remain the same.

PIPES, HEADERS AND FILTERS OH MY! For the most part, we simply used the parts from the engine we removed (OS CV15 small block) to make the EPIC feel at home in its new chassis.


WHAT WE NEEDED TO BOLT THE EPIC BB INTO OUR T-MAXX:

Header (Traxxas - ported)
Engine mount (Traxxas)
Header gasket (Traxxas)
Exhaust pipe (CVEC)
Air Filter (Motor Saver)
Fuel filter (Du-Bro)
Clutch (Traxxas standard 2 shoe)
Clutch Bell (Racers Edge 18 tooth)

NOTE: The parts listed above were taken from the previous engine. We chose the CVEC pipe over stock as it is one of our favorite pipes and offers solid performance.


   BREAKING THE EPIC .18!!     UMMMM...WE MEAN BREAKING IT IN!

Adjustment needles and idle screw

EPIC 18 Big Block Nitro Engine


BREAK-IN - The instructions give suggested needle settings for the basher and for the racer. One item we did not find on the break-in instructions is when we should start leaning the engine out. We contacted EPIC and they told us to start making needle adjustments (leaning it out) at about the 4 tank mark. The break-in instructions could be a bit more detailed however the parts breakdown is excellent.

EPIC's break-in procedures require running the engine and burning a 1/2 tank of fuel, then letting it cool (with the piston at BDC - Bottom Dead Center - at the bottom of the stroke). Getting the engine hot and letting it cool is called heat cycling. It allows the piston sleeve to expand and contract during break-in. We ran about 1.1 quarts of fuel through the engine during the break-in procedure.

The picture to the left shows the high-speed needle (light blue circle), the idle hex screw (green circle) and the low-speed needle (red circle). The idle screw placement is smart and easy to get to. Both needles turned smoothly and worked properly.

As recommended by the instructions, we utilized Trinity Monster Fuel 20%. Engine temps were taken using a MIP on-board temp gauge.

GEARING WE USED - The test truck was equipped with an 18 tooth Racers Edge clutch bell, a 70 tooth Kimbrough spur gear and standard issue Traxxas slipper pegs (all 12) and plates.

The clutch used was a standard two-shoe Traxxas clutch. It is apparent that upgrading to a 3 shoe aluminum clutch would be beneficial with this engine (and many other engines for that matter). In our opinion, a standard 2-shoe clutch is just not strong enough for power of this magnitude. We could see a significant amount of clutch debris building up on the chassis after running a quart through the engine. And the engine was mainly run at slow speeds during the first 1/2 quart.

Here's some test data we collected during the break-in procedure:

TEST LOCATION:
Burnett, Wisconsin
DATE & TIME: November 10, 2003
OUTSIDE TEMPERATURE: 53-54 F
BAROMETRIC PRESSURE: 30.06 inches and falling
WIND: From the South at 5-10 mph
TRACK / CONDITIONS: various - mainly level blacktop


TANK NUMBER:
ENGINE TEMPERATURE RANGE: NOTES:
1/2 & 1 120 - 135 F Running very rich but stays running with a little touch of the throttle. Heavy, solid smoke stream from exhaust. The one and only time the engine stalled (perfectly normal for a new engine).
1 thru 3 135 - 149 F Running quite rich but stays running - idles fairly well. Huge smoke stream from exhaust.
3-1/2 & 4 153 - 159 F Running rich but stays running - idles well. Power is starting to show a little.
4-1/2 & 5 163 - 180 F Begin making very fine adjustments to the high and low speed needles. Still running slightly rich - engine is starting to show us what a big bore is all about. 1/4 to 1/2 throttle in momentary bursts.
5-1/2 & 6 185 - 195 F More fine needle adjustments. The engine is really starting to sound good now. It is loosing the "gurgling" rich sound on acceleration. Still getting a nice stream of smoke from the exhaust. We continue taking the engine up to 1/2 throttle in momentary bursts.
6-1/2 & 7 210 - 220 F More fine needle adjustments. It is still producing a nice stream of smoke. We are running it at 1/2 throttle most of the time and a couple more 3/4 throttle stabs. (WOW).
7-1/2 & 8 220 - 235 F The first quart is gone. Holy moly! It is becoming difficult to run it at break-in speeds as it wants to stretch its legs. Additional fine needle adjustments.
8-1/2 & 9 234 - 240 F It is still producing a nice stream of smoke. Ok. Time to open it up 100% for the first time (we have been DYING to crack this baby open). BAM!!! Unbelievable RPM! This thing screams. Just when you think it has hit max RPM, it keeps climbing!
9 thru 10 243 - 252 F The power this engine is putting out is amazing. And it is only getting stronger. The engine winds up fast and smooth. No needle adjustment this run. It is putting out a nice stream of smoke and TONS of power. The EPIC 18 BB is performing flawlessly and there is no reason to lean it out any more. The temp range is very close to the operating range listed in the instructions. It is cool outside and we have been running without a body during the break-in process.

Additional notes: We have a full gallon of fuel through it now (December 4th, 2003) and the engine has continued to get stronger with every tank. The videos you see below are at the 9th and 10th tanks. They do not do the engine justice.

   WHAT WE HAVE BEEN WAITING FOR!   LET"S SEE WHAT IT CAN DO!
screaming down the road (1MB)
more pavement burning (727kb)
still running a little rich....at the 10th tank.


This baby will idle all day long
(900kb)
We got tired of waiting for it to die!

PERFORMANCE - OK! Break-in is done and it is time to start tuning for power. Watching this truck FLY is a real treat. And when we say "FLY", we mean "FLY". We can't wait to put it up against some other trucks in our fleet.

The power is smooth throughout the powerband with no indications of flat spots or sluggishness. Overall power is also very strong with the engine hitting maximum RPM very quickly. We have no trouble believing the 1.8HP output claimed by EPIC. As a comparison, we felt it was noticeably more powerful than the Traxxas 2.5. Looking at the specs, the EPIC has about 28% more HP than the TRX 2.5. This is a serious increase in power.

In high-traction situations (heavy, moist dirt), the truck would pull the front end off the ground without much trouble. In most situations, the shear HP and torque of the engine would break the tires loose (pavement, concrete, grass, dirt, etc). We left the stock T-Maxx treads on the truck during our testing. Bolting on a set of special treads would have helped the truck hook up better in some of these instances. (Hey! This is a engine review not a tire tread review!) We made some adjustments to our controller to try to keep the front of the truck on the ground. Remember this is a heavy truck that is LOADED with aluminum goodies. Sticking this engine in a "stock" (lighter weight) truck would certainly deliver sickening amounts of wheelie's.

As you will hear in the videos, the shift point needed to be adjusted. It was shifting out of first in about the first 10-15 feet. We adjusted it after shooting the video clips shown on the left. According to our gearing calculations, the truck should be running at about 38 MPH top speed.

We didn't get too crazy filming video as you will be seeing more of this engine in many BYT videos to come. Take note of the "clicking" sound you can hear in the some of the videos....time for new differential gears!

FUEL CONSUMPTION - The EPIC Big Bore is a thirsty engine and gobbled up a tank of fuel every 7-10 minutes, depending on how hard we were beating it. Our OS CV15 and TRX 2.5 will run about 10-13 minutes on a tank of fuel but they are not nearly as powerful or fun to drive as the EPIC. This is a small price to pay for big performance.

Here's some data on the conditions we were running in during the end of break-in / tuning the engine for top performance:

TEST LOCATION:
Burnett, Wisconsin
DATE & TIME: November 15, 2003
OUTSIDE TEMPERATURE: 51 F
BAROMETRIC PRESSURE: 30.00 inches and falling
WIND: From the SouthWest
at 0-10 mph
TRACK / CONDITIONS: various (dirt, grass, road, etc.)




   MAY I HAVE THE ENVELOPE PLEASE.....

banging around
(453kb)
Listen for the "clicking" sound coming
from the diff's! OUCH!!! Time for new
differential gears :)


beating around
(699kb)
look for the nice smoke trail....

COST / VALUE - We have seen this engine being sold on the web for about $140. This is the same price or less than many other less powerful engines on the market. Why would you pay the same amount of money or more for less power? We're not sure? This is a "no brainer". More power for the same or less money....hmmmmm.

THE VERDICT - This engine easily exceeded our expectations in every category. The power is smooth and non-stop. Again, we really didn't notice any flat spots in the overall powerband. Torque was plentiful as it propelled the truck rapidly from a dead stop and lugged through grass, leaves, heavy dirt and up inclines with no problems. It starts very easily (1-3 tugs) and will happily idle all day long. In fact, it only died on us one time and that was while breaking it in on tank #1. It is a very reliable and consistent running engine.

We should note that you may want to upgrade to a better clutch (we have a 3-shoe aluminum clutch on the way) as the increased horsepower will certainly give it a work out. It should also be said that the more powerful engine will test the integrity of your drive train. Shortly after we started tuning the EPIC for power we heard the all too familiar sound of "clicking" differential gears. The diff's in this particular truck have never been touched in close to 10 gallons of fuel. They were ready to be rebuilt anyway! It is no fault of the engine however realize that when you strap this much horsepower into any RC vehicle, it will let you know of any weak points that may exist.

This engine is worth every penny. In fact the MSRP is about $230 and rightfully so. At over $200, it would still be worth every penny. (Remember you can get it for about $140).

EPIC has provided you with an easy way to put the smack down on your "small block" buddies. Imagine this .....watching your buddies drop their jaws and start to cry when you smoke by their "new" T-Maxx's in your "old" T-Maxx....that alone is priceless. When they ask "hey, what engine do you have in there?", you can say "awww, it's just a small block".

Visit the EPIC Motorsports web site for more info on the BB (Bad Boy / Big Bore).

 EPIC MOTORSPORTS .18 BIG BORE NITRO ENGINE
packaging   - EXCELLENT
quality / finish   - EXCELLENT
instructions   - GOOD
installation   - EXCELLENT
performance   - EXCELLENT
cost/value   - EXCELLENT
OVERALL   - EXCELLENT
